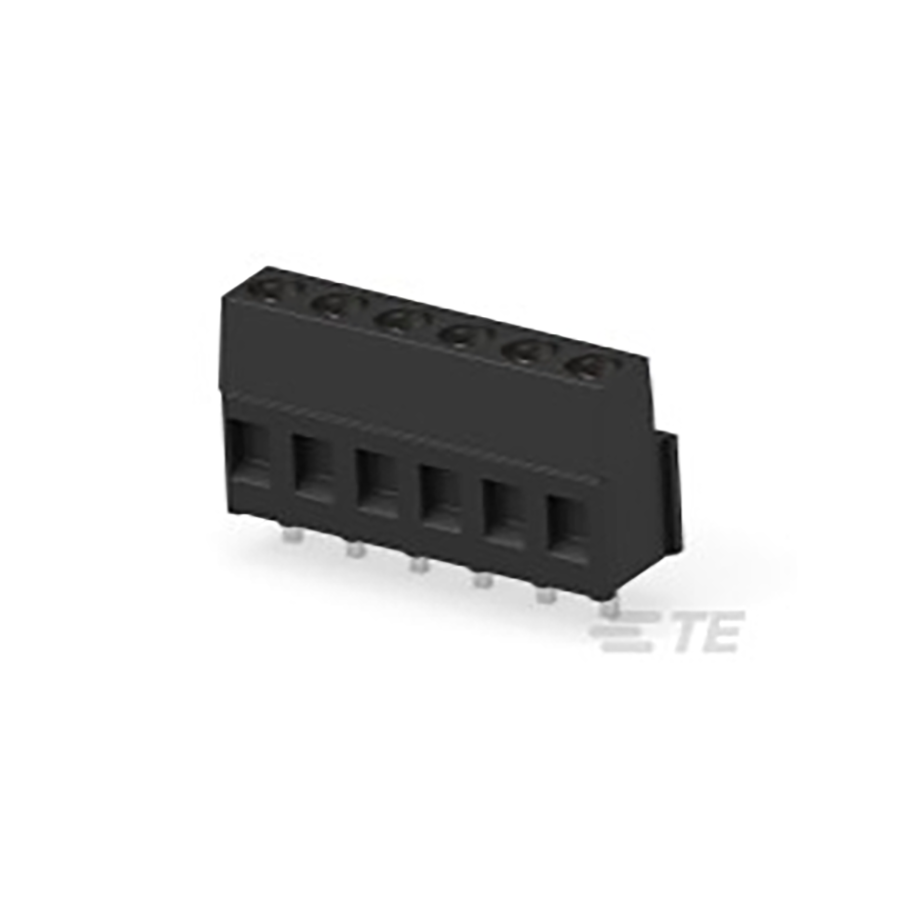

796949-6
Manufacturer:
TE Connectivity
Mfr.Part #:
796949-6
Datasheet:
Description:
Terminal Blocks Through Hole 6 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 30.48 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 15.2 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Number of Contacts | 6 |
| ELV | Compliant |
| Number of Poles | 6 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 12 AWG |
| Thread Size | M3 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Black |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 355
Distributors
pcbx
pcbxUnit Price$3.54796
Ext.Price$3.54796
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.54796 | $3.54796 |
| 10 | $1.95864 | $19.58640 |
| 25 | $1.81579 | $45.39475 |
| 50 | $1.68336 | $84.16800 |
| 100 | $1.46191 | $146.19100 |
| 300 | $1.26959 | $380.87700 |
| 500 | $1.10257 | $551.28500 |
| 1000 | $0.95752 | $957.52000 |
